RHC Series High Resistance Thick Film Chip Resistors (0402–2512, 11 MΩ–1 GΩ)

RHC Series High Resistance Thick Film Chip Resistors are available in sizes from 0402 to 2512, with resistance values ranging from 11 MΩ to 1 GΩ depending on the size. The series offers power ratings from 1/16 W to 1 W at 70°C and maximum working voltages from 50 V to 250 V. TCR options include ±200 ppm/°C, ±300 ppm/°C, and ±700 ppm/°C depending on the resistance range. Resistance tolerances of ±1%, ±5%, and ±10% are available, with both bulk and tape-and-reel packaging options.

ГОРЯЧИЕ ТЕГИ : High Resistance Thick Film Chip Resistor High Resistance Chip Resistor High Resistance Thick Film Resistor High Resistance Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor RHC Series Resistor 11MΩ to 1GΩ Resistor 0402 to 2512 Chip Resistor 1/16W to 1W Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RS Series Thick Film Chip Resistors（ 0402–2512, 1Ω–1MΩ)

RS Series Thick Film Chip Resistors are available in sizes from 0402 to 2512, with normal, double, and triple power options depending on the model. Power ratings range from 0.0625 W to 2 W at 70°C. The series covers resistance values from 1 Ω to 1 MΩ, with maximum working voltages ranging from 50 V to 250 V. TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω and ±100 ppm/°C for resistance values from 10 Ω to 1 MΩ. Available resistance tolerances include ±5%, ±10%, and ±20%. Bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : RS Series Resistor Double Power Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor 0402 to 2512 Chip Resistor 1Ω to 1MΩ Resistor Up to 2W Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать

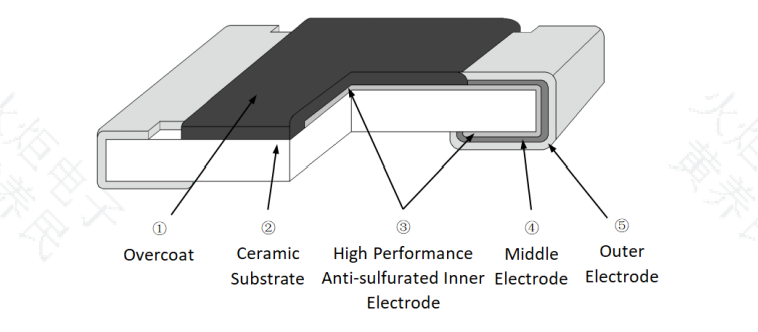

RW Series Anti-Sulfurated Thick Film Chip Resistors（ 0402-2512, 1Ω–10MΩ )

RW Series Anti-Sulfurated Thick Film Chip Resistors feature a high-performance anti-sulfurated inner electrode and are available in sizes from RW1005 (0402) to RW6332 (2512). The series offers resistance values from 1 Ω to 10 MΩ and power ratings from 1/16 W to 1 W at 70°C. Maximum working voltages range from 50 V to 250 V. The TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω, and ±100 ppm/°C for resistance values from 10 Ω to 10 MΩ. Available resistance tolerances include ±1%, ±2%, and ±5%, with both bulk and tape-and-reel packaging options.

ГОРЯЧИЕ ТЕГИ : Anti-Sulfurated Thick Film Chip Resistor Anti-Sulfurated Chip Resistor Thick Film Chip Resistor RW Series Resistor 1Ω to 10MΩ Resistor 1/16W to 1W Resistor 50V to 250V Chip Resistor ±100ppm/°C TCR Resistor ±200ppm/°C TCR Resistor 0402 to 2512 Chip Resistor ±1% to ±5% Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RC Series Thick Film Jumper Chip Resistors（ 01005-2512, 50mΩ Max ）

RC Series Thick Film Jumper Chip Resistors are designed for jumper connections in surface-mount circuits. The series is available in multiple case sizes, from RC0402 (01005) to RC6332 (2512), with power ratings ranging from 1/32 W to 1 W at 70°C. The maximum resistance is 50 mΩ, while the maximum current ranges from 0.5 A to 4 A depending on the case size. The series features Sn termination and is available in both bulk and tape-and-reel packaging.

ГОРЯЧИЕ ТЕГИ : Thick Film Jumper Chip Resistor Jumper Chip Resistor RC Series Jumper Resistor 50mΩ Jumper Resistor 50mΩ Max Resistance 0.5A Jumper Resistor 4A Jumper Resistor 0.5A to 4A Jumper Resistor 1/32W to 1W Jumper Resistor Sn Termination Jumper Resistor 01005 to 2512 Jumper Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RW Series Anti-Sulfurated Thick Film Jumper Chip Resistors（ 0402-2512, 50mΩ Max )

RW Series Anti-Sulfurated Thick Film Jumper Chip Resistors feature a high-performance anti-sulfurated inner electrode and are available in sizes from RW1005 (0402) to RW6332 (2512). The series offers power ratings from 1/16 W to 1 W at 70°C, with maximum current ratings ranging from 1 A to 4 A depending on the size. The maximum resistance is 50 mΩ. Sn termination is specified, with both bulk and tape-and-reel packaging options available.

ГОРЯЧИЕ ТЕГИ : Anti-Sulfurated Thick Film Jumper Chip Resistor Anti-Sulfurated Jumper Chip Resistor Thick Film Jumper Chip Resistor Jumper Chip Resistor RW Series Jumper Resistor 50mΩ Jumper Resistor 50mΩ Max Resistance 1A to 4A Jumper Resistor 1/16W to 1W Jumper Resistor Sn Termination Jumper Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RC Series Thick Film Chip Resistors （ 01005-2512, 1Ω–10MΩ ）

RC Series Thick Film Chip Resistors are manufactured using thick-film technology and are available in a wide range of case sizes, including RC0402, RC0603, RC1005, RC1608, RC2012, RC3216, RC3225, RC5025, and RC6332. The series offers power ratings from 1/32 W to 1 W at 70°C, with a resistance range from 1 Ω to 10 MΩ. Various resistance tolerances are available, including ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, and ±5%, depending on the model and resistance range. Multiple TCR options are also provided to meet different circuit requirements. Bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : Thick Film Chip Resistor Thick Film Resistor Chip Resistor SMD Resistor Thick Film SMD Resistor 1Ω to 10MΩ Resistor RC0402 to RC6332 Fixed Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RC Series Wide Electrode Thick Film Chip Resistors ( 0612–1225, 10Ω–1MΩ )

RC Series Wide Electrode Thick Film Chip Resistors feature an extended electrode structure designed to improve soldering reliability and mechanical stability. The series is available in 0612 and 1225 sizes, with power ratings of 3/4 W and 3 W respectively. Resistance values range from 10Ω to 1MΩ, with TCR options including ±100 ppm/°C, ±200 ppm/°C, ±300 ppm/°C, and -200~+500 ppm/°C depending on resistance values. The series supports resistance tolerances of ±1%, ±2%, and ±5%, and is suitable for applications requiring enhanced mounting reliability and high power handling capability.

ГОРЯЧИЕ ТЕГИ : Wide Electrode Thick Film Chip Resistor Wide Electrode Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor RC Series Resistor High Power Chip Resistor 3W Chip Resistor 0612 Chip Resistor 1225 Chip Resistor 10Ω to 1MΩ Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RCT Series Low TCR Thick Film Chip Resistors ( 0402–2512, 1 kΩ–300 kΩ )

RCT Series Low TCR Thick Film Chip Resistors are available in sizes from 0402 to 2512, with resistance values ranging from 1 kΩ to 300 kΩ. The series features a TCR of ±50 ppm/°C and offers power ratings from 1/16 W to 1 W at 70°C. Maximum working voltages range from 50 V to 250 V, depending on the size. Resistance tolerances of ±0.1%, ±0.5%, and ±1% are available. Both bulk and tape-and-reel packaging options are provided.

ГОРЯЧИЕ ТЕГИ : Low TCR Thick Film Chip Resistor ±50 ppm/°C TCR Resistor 1kΩ to 300kΩ Resistor 1/16W to 1W Chip Resistor Low TCR Chip Resistor Chip Resistor RCT Series Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RP Series High Power Thick Film Chip Resistors（ 1206–2525, 1Ω–6.2kΩ )

RP Series High Power Thick Film Chip Resistors are available in 1206, 2512, and 2525 sizes, with power ratings ranging from 1 W to 6 W at 70°C. The series covers resistance values from 1 Ω to 6.2 kΩ, depending on the model and power rating. TCR options include ±100 ppm/°C and ±300 ppm/°C, with resistance tolerances of ±5%, ±10%, and ±20%. Both bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : High Power Thick Film Chip Resistor High Power Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor Torch Resistor RP Series Resistor 1W to 6W Chip Resistor 1Ω to 6.2kΩ Resistor 1206 High Power Resistor 2512 High Power Resistor 2525 High Power Resistor
