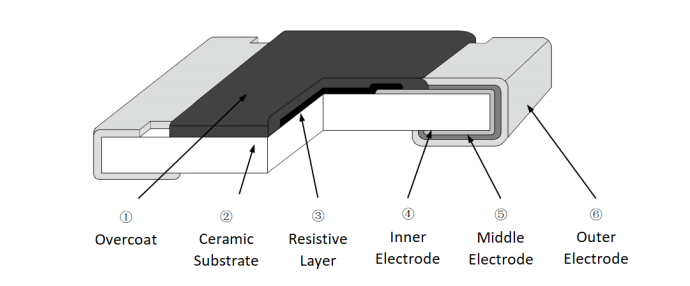

RHC Series High Resistance Thick Film Chip Resistors (0402–2512, 11 MΩ–1 GΩ)

RHC Series High Resistance Thick Film Chip Resistors are available in sizes from 0402 to 2512, with resistance values ranging from 11 MΩ to 1 GΩ depending on the size. The series offers power ratings from 1/16 W to 1 W at 70°C and maximum working voltages from 50 V to 250 V. TCR options include ±200 ppm/°C, ±300 ppm/°C, and ±700 ppm/°C depending on the resistance range. Resistance tolerances of ±1%, ±5%, and ±10% are available, with both bulk and tape-and-reel packaging options.

ГОРЯЧИЕ ТЕГИ : High Resistance Thick Film Chip Resistor High Resistance Chip Resistor High Resistance Thick Film Resistor High Resistance Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor RHC Series Resistor 11MΩ to 1GΩ Resistor 0402 to 2512 Chip Resistor 1/16W to 1W Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать

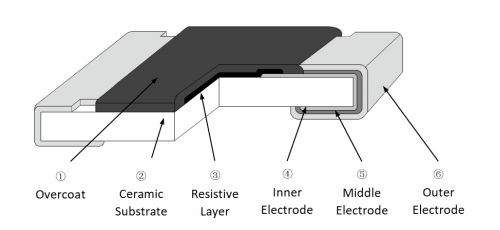

RS Series Thick Film Chip Resistors（ 0402–2512, 1Ω–1MΩ)

RS Series Thick Film Chip Resistors are available in sizes from 0402 to 2512, with normal, double, and triple power options depending on the model. Power ratings range from 0.0625 W to 2 W at 70°C. The series covers resistance values from 1 Ω to 1 MΩ, with maximum working voltages ranging from 50 V to 250 V. TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω and ±100 ppm/°C for resistance values from 10 Ω to 1 MΩ. Available resistance tolerances include ±5%, ±10%, and ±20%. Bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : RS Series Resistor Double Power Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor 0402 to 2512 Chip Resistor 1Ω to 1MΩ Resistor Up to 2W Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать

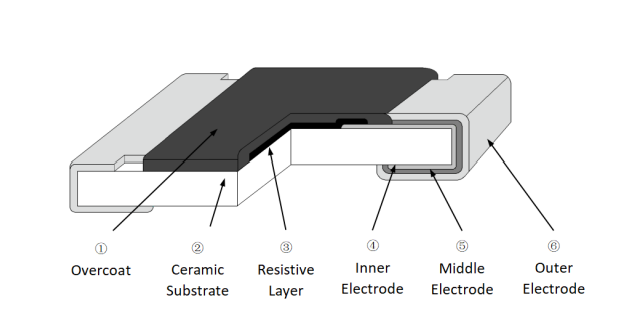

RC Series Thick Film Chip Resistors （ 01005-2512, 1Ω–10MΩ ）

RC Series Thick Film Chip Resistors are manufactured using thick-film technology and are available in a wide range of case sizes, including RC0402, RC0603, RC1005, RC1608, RC2012, RC3216, RC3225, RC5025, and RC6332. The series offers power ratings from 1/32 W to 1 W at 70°C, with a resistance range from 1 Ω to 10 MΩ. Various resistance tolerances are available, including ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, and ±5%, depending on the model and resistance range. Multiple TCR options are also provided to meet different circuit requirements. Bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : Thick Film Chip Resistor Thick Film Resistor Chip Resistor SMD Resistor Thick Film SMD Resistor 1Ω to 10MΩ Resistor RC0402 to RC6332 Fixed Chip Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RC Series Wide Electrode Thick Film Chip Resistors ( 0612–1225, 10Ω–1MΩ )

RC Series Wide Electrode Thick Film Chip Resistors feature an extended electrode structure designed to improve soldering reliability and mechanical stability. The series is available in 0612 and 1225 sizes, with power ratings of 3/4 W and 3 W respectively. Resistance values range from 10Ω to 1MΩ, with TCR options including ±100 ppm/°C, ±200 ppm/°C, ±300 ppm/°C, and -200~+500 ppm/°C depending on resistance values. The series supports resistance tolerances of ±1%, ±2%, and ±5%, and is suitable for applications requiring enhanced mounting reliability and high power handling capability.

ГОРЯЧИЕ ТЕГИ : Wide Electrode Thick Film Chip Resistor Wide Electrode Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor RC Series Resistor High Power Chip Resistor 3W Chip Resistor 0612 Chip Resistor 1225 Chip Resistor 10Ω to 1MΩ Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать

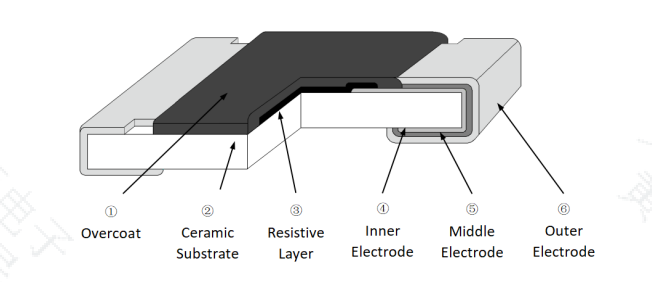

RCT Series Low TCR Thick Film Chip Resistors ( 0402–2512, 1 kΩ–300 kΩ )

RCT Series Low TCR Thick Film Chip Resistors are available in sizes from 0402 to 2512, with resistance values ranging from 1 kΩ to 300 kΩ. The series features a TCR of ±50 ppm/°C and offers power ratings from 1/16 W to 1 W at 70°C. Maximum working voltages range from 50 V to 250 V, depending on the size. Resistance tolerances of ±0.1%, ±0.5%, and ±1% are available. Both bulk and tape-and-reel packaging options are provided.

ГОРЯЧИЕ ТЕГИ : Low TCR Thick Film Chip Resistor ±50 ppm/°C TCR Resistor 1kΩ to 300kΩ Resistor 1/16W to 1W Chip Resistor Low TCR Chip Resistor Chip Resistor RCT Series Resistor Torch Resistor

ЧИТАТЬ ДАЛЕЕ Скачать
RHV Series High Voltage Thick Film Chip Resistors ( 0402–2512, 10 kΩ–500 MΩ )

RHV Series High Voltage Thick Film Chip Resistors are available in 0402, 0603, 0805, 1206, and 2512 sizes, with power ratings ranging from 1/16 W to 1 W at 70°C. The series covers resistance values from 10 kΩ to 500 MΩ and maximum working voltages from 100 V to 3000 V, depending on the size. TCR options include ±300 ppm/°C and ±700 ppm/°C depending on the resistance range. Resistance tolerances of ±1%, ±5%, and ±10% are available. Both bulk and tape-and-reel packaging options are provided.

ГОРЯЧИЕ ТЕГИ : High Voltage Thick Film Chip Resistor High Voltage Chip Resistor High Voltage Thick Film Resistor High Voltage Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor RHV Series Resistor 100V to 3000V Chip Resistor 10kΩ to 500MΩ Resistor 0402 to 2512 Chip Resistor

ЧИТАТЬ ДАЛЕЕ Скачать

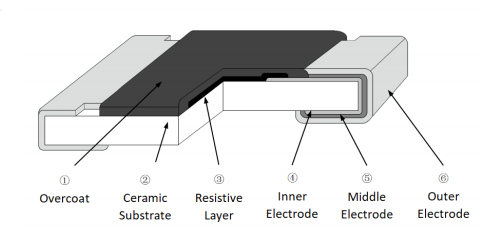

RP Series High Power Thick Film Chip Resistors（ 1206–2525, 1Ω–6.2kΩ )

RP Series High Power Thick Film Chip Resistors are available in 1206, 2512, and 2525 sizes, with power ratings ranging from 1 W to 6 W at 70°C. The series covers resistance values from 1 Ω to 6.2 kΩ, depending on the model and power rating. TCR options include ±100 ppm/°C and ±300 ppm/°C, with resistance tolerances of ±5%, ±10%, and ±20%. Both bulk and tape-and-reel packaging options are available.

ГОРЯЧИЕ ТЕГИ : High Power Thick Film Chip Resistor High Power Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor Torch Resistor RP Series Resistor 1W to 6W Chip Resistor 1Ω to 6.2kΩ Resistor 1206 High Power Resistor 2512 High Power Resistor 2525 High Power Resistor
