National Military Standard General-Purpose Microwave Ceramic Chip Capacitors (60pF-120pF, 50V)

Product Description

Mainly used in microwave integrated circuits (MICs) for DC blocking, RF bypass, source bypass, and impedance matching.

General specification is GJB2442-2021, detail specification is ZZR-Q/TJKJ20007-2019, CTK1101SG general-purpose single-layer chip ceramic fixed capacitor with failure-rate level, and standard number is JLCH61020094, featuring excellent microwave performance with applicable frequency of 100 kHz~100 GHz, and surface gold electrodes suitable for gold-wire and gold-ribbon bonding.

Емкость :
60 pF ~ 120 pF
Напряжение :
50V
Толерантность :
K: ±10%; M: ±20%
Размер :
CTK1101SG25
Диэлектрик :
BY
Оценка :
National Military Standard
Время выполнения :
8~12 weeks

ЗАПРОС СЕЙЧАС

информация о продукте

I. Applications

Mainly used in microwave integrated circuits (MICs) for DC blocking, RF bypass, source bypass, and impedance

matching.

II. Features

◼ General specification: GJB2442-2021;

◼ Detail specification: ZZR-Q/TJKJ20007-2019, CTK1101SG

general-purpose single-layer chip ceramic fixed capacitor with

failure-rate level;

◼ Standard number: JLCH61020094;

◼ Excellent microwave performance; applicable frequency: 100

kHz~100 GHz;

◼ Surface gold electrodes, suitable for gold-wire and gold-ribbon

bonding

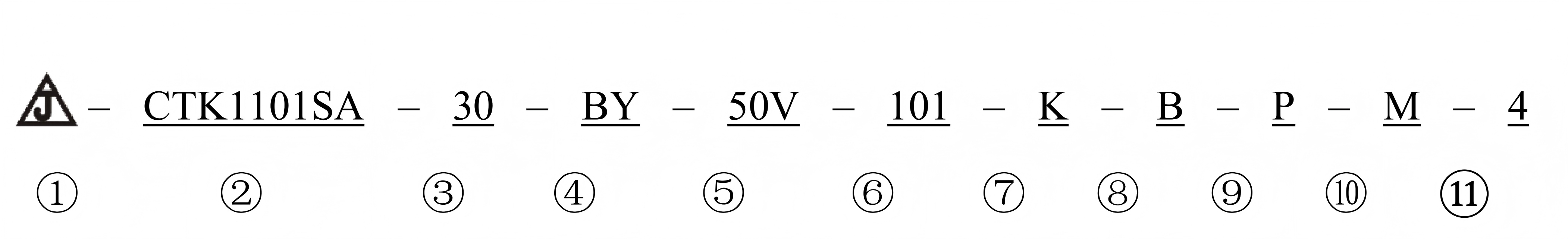

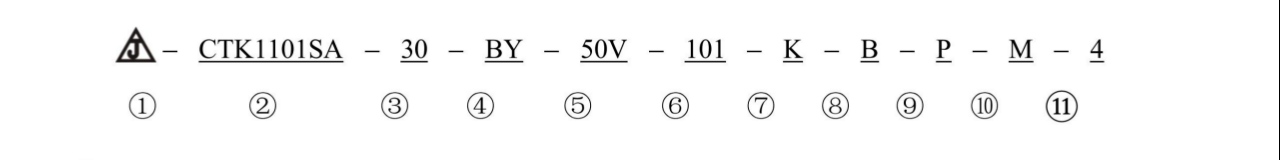

① indicates certification mark.

② indicates product series and structure; for example, CTK1101SG is general-purpose and CTK1101SA is array type.

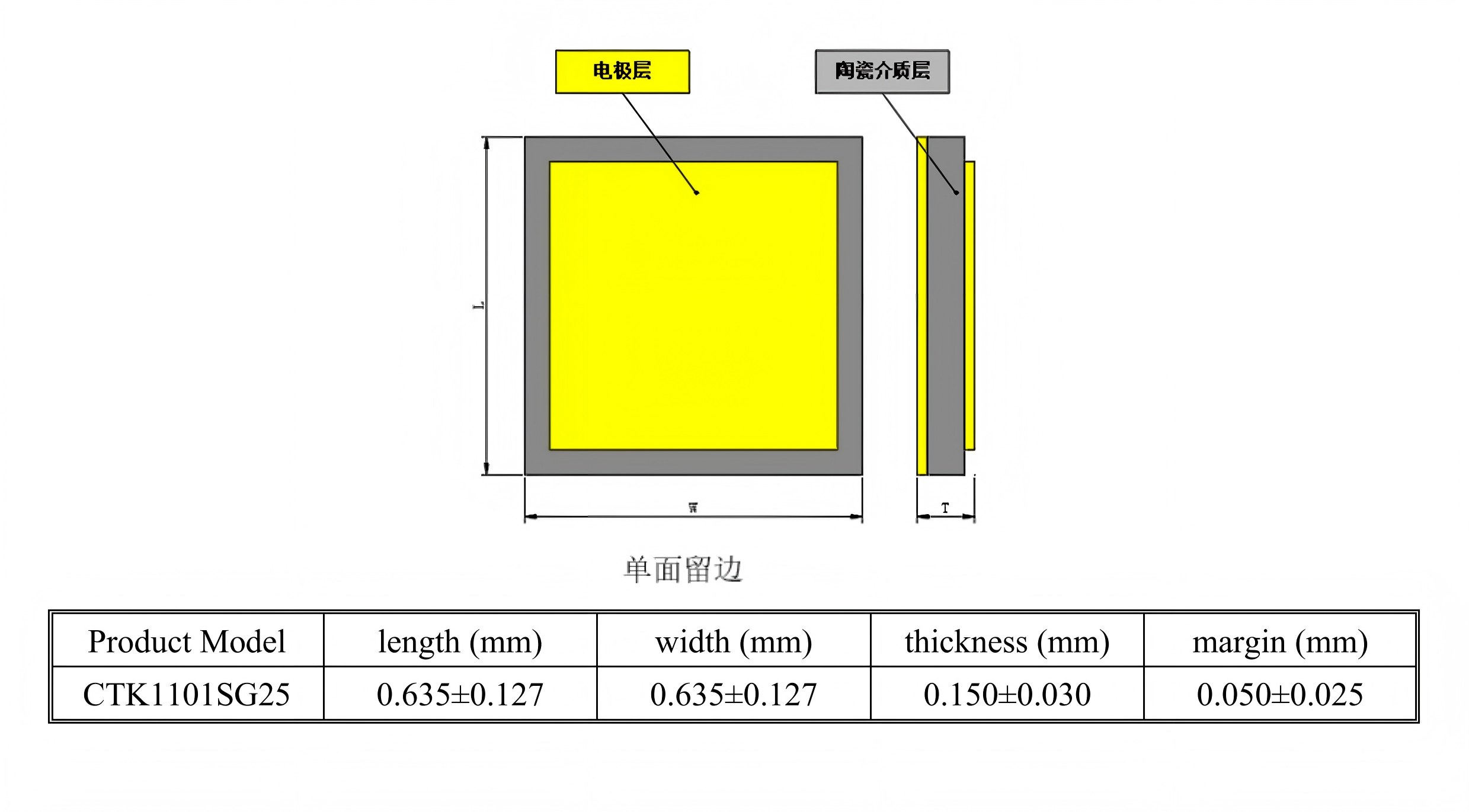

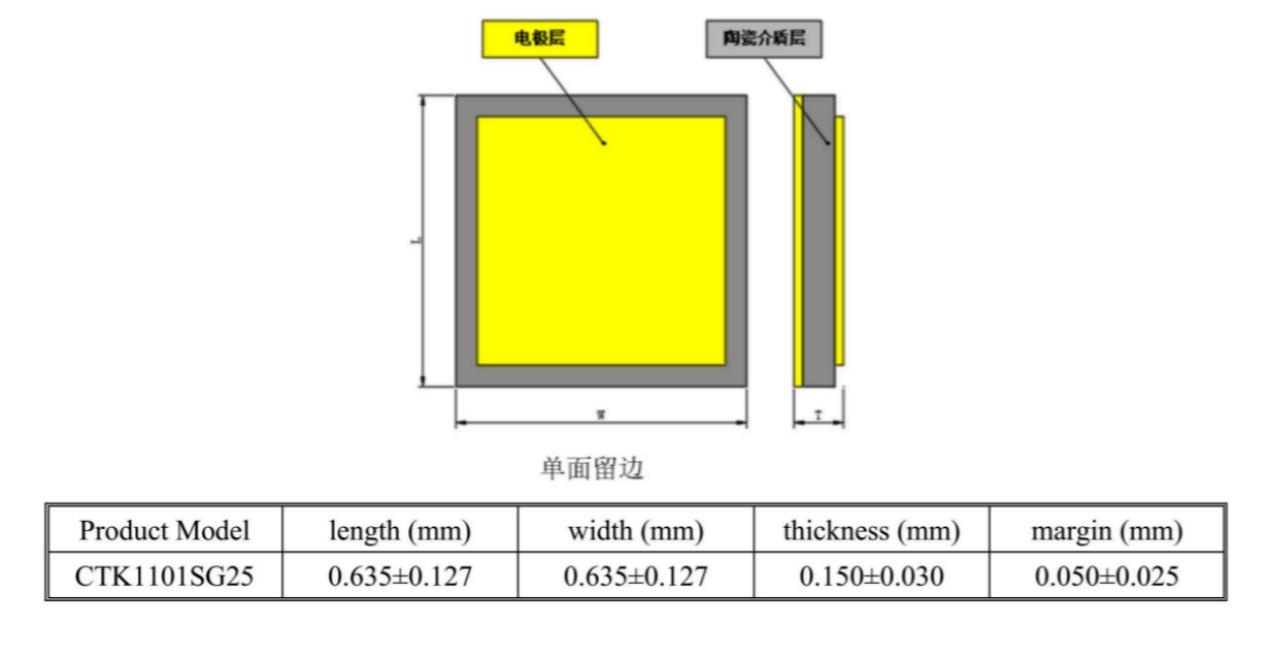

③ indicates dimensions: 30 indicates a microwave ceramic chip capacitor whose width uses size code 30;

see the size-code table for other codes

④ indicates temperature coefficient/temperature characteristic: see the dielectric coding rule table (page 4).

⑤ indicates rated voltage: directly marked in volts (V).

⑥ indicates nominal capacitance: nominal capacitance is marked in picofarads (pF) with a three-digit code. The

first two digits are significant figures, and the last digit indicates the number of zeros. When nominal capacitance is

below 10 pF, the letter "R" indicates the decimal point: digits before R are the integer part and digits after R are the

decimal part. For example, "1R0" indicates 1.0 pF, "4R7" indicates 4.7 pF, and "R75" indicates 0.75 pF.

⑦ indicates capacitance tolerance: K: ±10%; M: ±20%.

⑧ indicates electrode configuration: B = single-side margin.

⑨ indicates metal film stack: P = TiW/Ni/Au.

⑩ indicates failure-rate level: M represents a 1.0%/1000 h failure-rate level.

⑪ indicates the number of electrode segments.

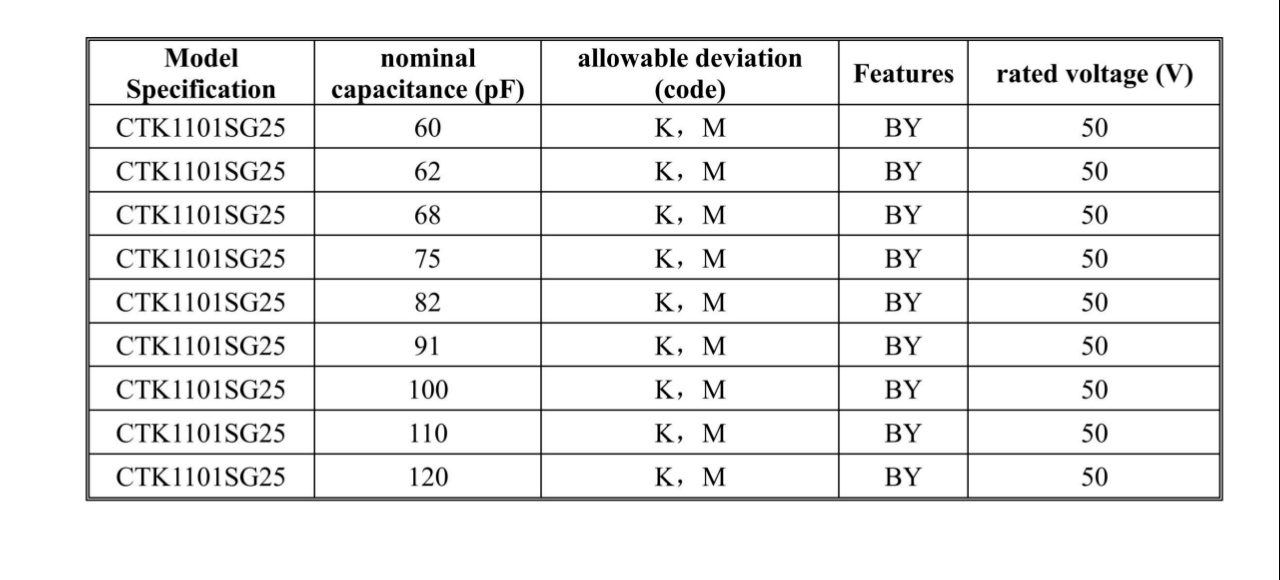

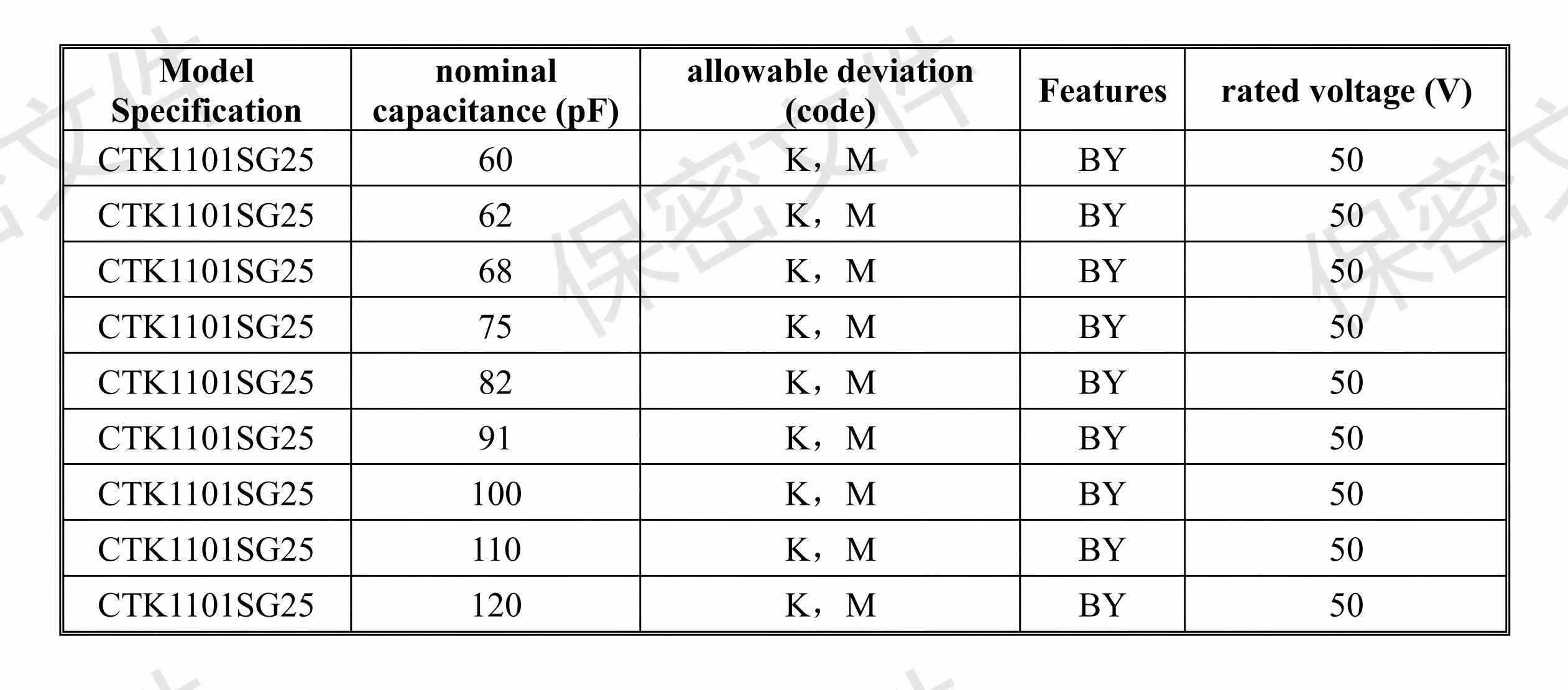

IV. Representative Models of National Military Standard General-Purpose

Microwave Ceramic Chip Capacitors
