MLCCs are widely used in modern electronic systems because of their compact size, stable electrical performance, and high reliability. However, ceramic materials are inherently brittle, which means excessive mechanical stress can create cracks and potentially affect long-term circuit reliability.
Mechanical stress can be introduced during PCB assembly, soldering, board depaneling, mounting, or even during normal operation when the PCB bends or expands under temperature changes.

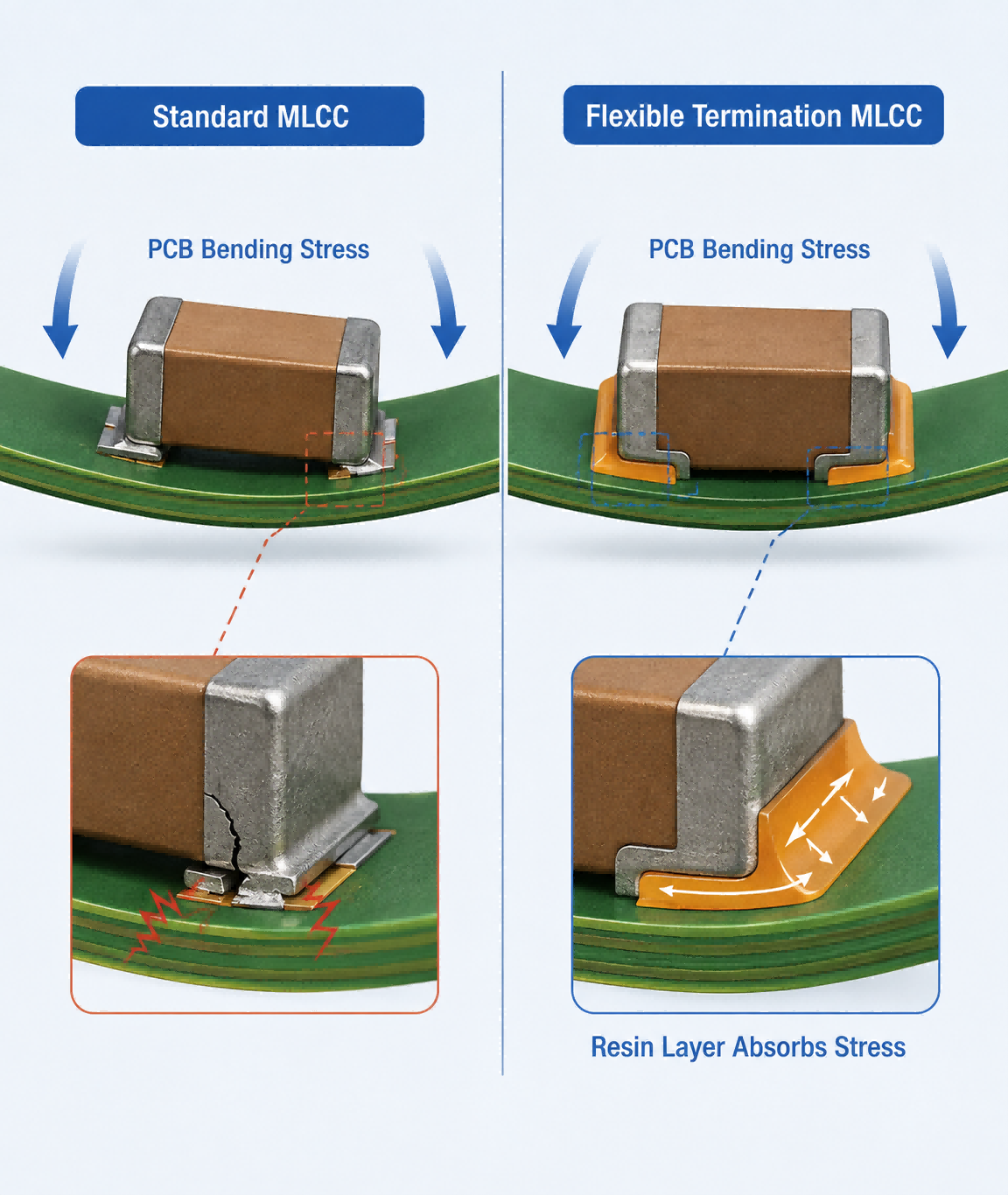

Because a conventional MLCC has relatively rigid terminations, external stress transferred from the PCB may reach the ceramic body directly. In demanding applications, repeated bending or thermal-mechanical stress can increase the risk of internal cracking.

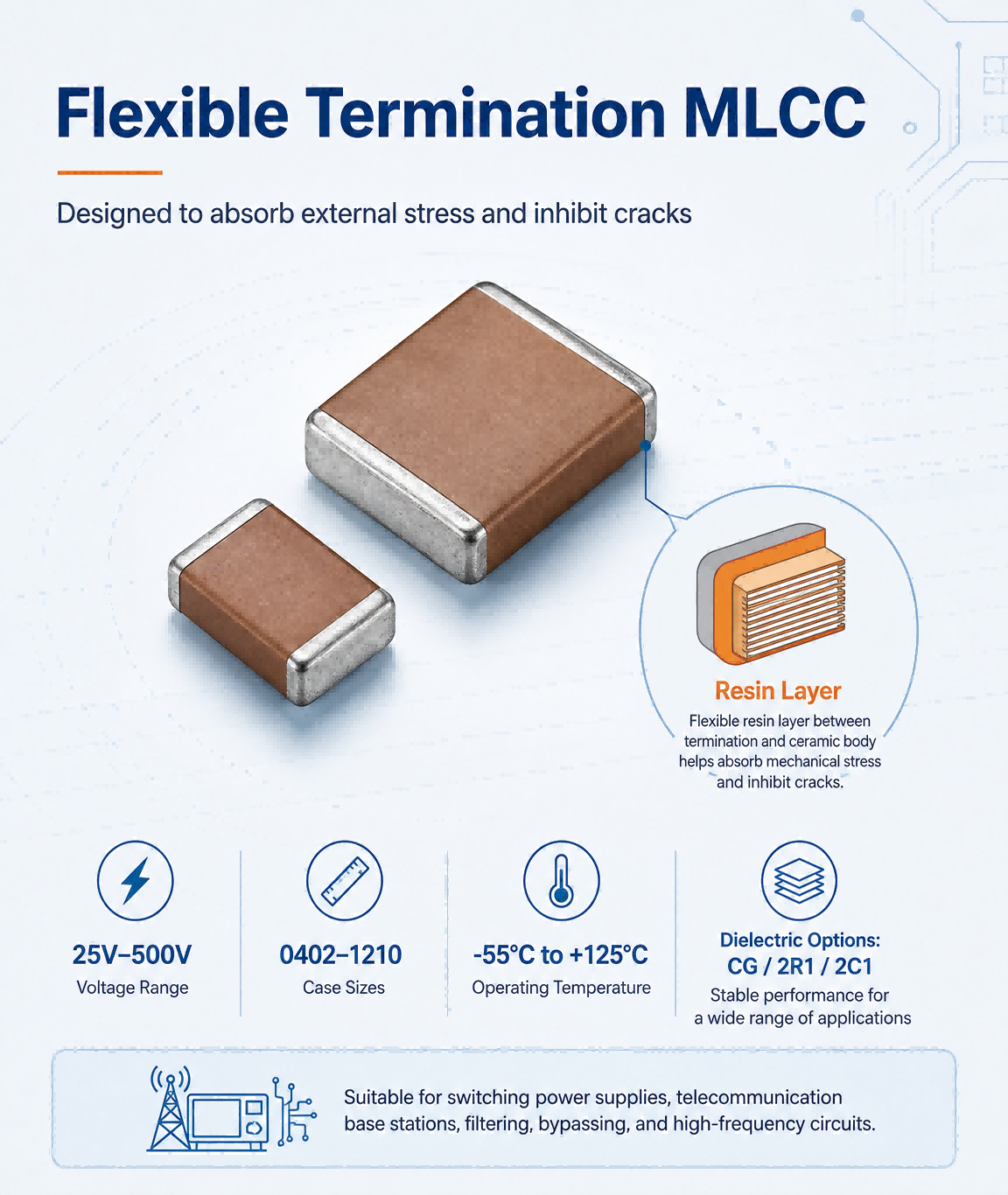

Flexible termination MLCCs introduce an additional resin electrode layer at the end termination. This flexible layer helps absorb external mechanical stress before it reaches the ceramic body, reducing the possibility of crack formation.
This structure is especially useful in circuits where resistance to PCB bending is important, such as switching power supplies, telecommunication base stations, industrial electronics, and other high-reliability systems.
Torch Electron offers Flexible Termination Chip Multilayer Ceramic Capacitors with CG, 2R1, and 2C1 dielectric options.
Key product capabilities include:
Different series can support applications such as high-frequency coupling, resonance circuits, filtering, bypassing, low-noise circuits, and switching power supplies.
By combining flexible termination technology with reliable ceramic capacitor manufacturing, Torch Electron provides MLCC solutions designed to improve mechanical durability while maintaining stable electrical performance.
